  ALS-200Q Limit Switch Box (Magnet Switches)
ALS-200 Series - ALS-200Q Limit Switch Box (Magnet Switches)

Design
                                  The ALS-200Q is armed with magnet switches to indicate the open and closed positions remotely.This kind of limit switch box applies compact design to offer a mini-type limit switch box which provides a simple application for valve and pneumatic actuator position monitoring. This mini-type product is weather proof protection in an aluminum die-cast enclosure and O-ring. The bracket is designed in light of ISO5211 and NAMUR standard.

Features
1, Compact and Beautiful Design: Mini-type aluminum die-casting cover and housing with powder coated in any colors.
2, Bolts on Visual Position Indicator: Secure waterproof.
3, "Quick-Set" Cam: With spring loaded splined cam, no need to adjust again after initial setting and Easy setting without tool.
4, Multipoint terminal strip: Standard 8 points and enough strips for connection.
5, Dual cable entries: 2xG1/2 (Standard); 2-M20x1.5 or 2x1/2NPT(Option).
6, Captive cover bolts: No worry to loose bolts while cover opens.
7, Easy mounting: NAMUR standard stainless steel shaft and bracket.

Structure and Material
No.
Part Name
Qty.
Material
1
Box Cover
1
Aluminum Die Casting


2
Box Body
1
Aluminum Die Casting
3
Shaft
1
Stainless Steel
4
Indicator Cover
1
Polycarbonate
5
Indicator
1
ABS/Polycarbonate
6
Switch
2
Magnet
7
Terminal Strip
8
Polycarbonate
Tin Plated Brass
Stainless Steel
8
Cam
2
Polycarbonate
9
Spring
1
Stainless Steel
10
Bolts
4
Stainless Steel
11
Shaft O-ring
1
NBR
12
Body O-ring
1
NBR
13
Indicator O-ring
1
NBR
14
Bushing
1
Bronze
15
Earth Lug
1
Stainless Steel
16
E-ring
1
Stainless Steel

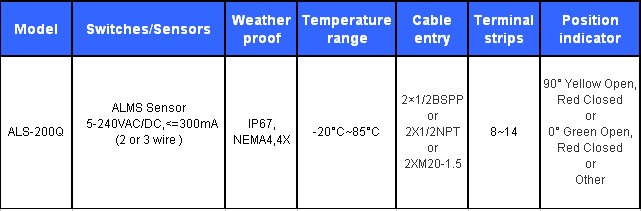

Specification


Dimension






Wiring





Mounting Bracket

Model
Material
Application
MB-1.0
Steel plate
30x80 H:20
Stainless steel
Steel plate
30x80 H:30
Stainless steel
MB-1.1

Steel plate
30x130 H:30-50
Stainless steel
