  Out Torque(2)
C series - Aluminum - Out Torque(2)

Out torque table of spring return






OUTPUT TORQUE OF SPRING RETURN ACTUATORS (Unit:Nm)

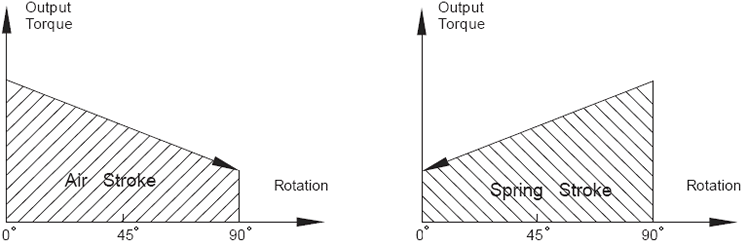

Output torque of air to springs
Springs ' output
Air pressure
2Bar
2.5Bar
3Bar
4Bar
5Bar
6Bar
7Bar
8Bar
10Bar
Model
Spring
0˚
90˚
0˚
90˚
0˚
90˚
0˚
90˚
0˚
90˚
0˚
90˚
0˚
90˚
0˚
90˚
0˚
90˚
90˚
0˚
Q.ty
Start
End
Start
End
Start
End
Start
End
Start
End
Start
End
Start
End
Start
End
Start
End
Start
End
C-125SR
5
50.5
23.5
76.2
49.2
101.8
74.8
153.1
126.1
204.4
177.4
79
52
6
65.2
34.2
90.8
59.8
142.1
111.1
193.4
162.4
94
63
7
80.8
43.8
132.1
95.1
183.4
146.4
234.6
197.6
110
73
8
121.1
80.1
172.4
131.4
223.6
182.6
274.9
233.9
125
84
9
111.1
64.1
162.4
115.4
213.6
166.6
264.9
217.9
316.2
269.2
141
94
10
151.4
99.4
202.6
150.6
253.9
201.9
305.2
253.2
407.7
355.7
157
105
11
141.4
83.4
192.6
134.6
243.9
185.9
295.2
237.2
397.7
339.7
173
115
12
182.6
119.6
233.9
170.9
285.2
222.2
387.7
324.7
188
125
C-140SR
5
89.4
46.4
133.3
90.3
177.1
134.1
264.8
221.8
352.5
309.5
129
86
6
116.3
64.3
160.1
108.1
247.8
195.8
335.5
283.5
155
103
7
143.1
82.1
230.8
169.8
318.5
257.5
406.2
345.2
181
120
8
213.8
144.8
301.5
232.5
389.2
320.2
476.9
407.9
206
137
9
195.8
118.8
283.5
206.5
371.2
294.2
458.9
381.9
546.6
469.6
232
155
10
266.5
180.5
354.2
268.2
441.9
355.9
529.6
443.6
705
619
258
172
11
249.5
154.5
337.2
242.2
424.9
329.9
512.6
417.6
688
593
284
189
12
320.2
216.2
407.9
303.9
495.6
391.6
671
567
310
206
C-160SR
5
127.3
59.3
194.1
126.1
260.9
192.9
394.6
326.6
528.2
460.2
208
140
6
166.1
84.1
232.9
150.9
366.6
284.6
500.2
418.2
250
168
7
204.9
108.9
338.6
242.6
472.2
376.2
605.8
509.8
292
196
8
311.6
201.6
445.2
335.2
578.8
468.8
712.5
602.5
333
223
9
283.6
159.6
417.2
293.2
550.8
426.8
684.5
560.5
818.1
694.1
375
251
10
389.2
251.2
522.8
384.8
656.5
518.5
790.1
652.1
1057.4
919.4
417
279
11
361.2
210.2
494.8
343.8
628.5
477.5
762.1
611.1
1029.4
878.4
458
307
12
466.8
301.8
600.5
435.5
734.1
569.1
1001.4
836.4
500
335
C-190SR
5
230.7
121.7
338.4
229.4
446.1
337.1
661.5
552.5
876.9
767.9
309
200
6
298.4
167.4
406.1
275.1
621.5
490.5
836.9
705.9
371
240
7
366.1
213.1
581.5
428.5
796.9
643.9
1012.2
859.2
433
280
8
541.5
366.5
756.9
581.9
972.2
797.2
1187.6
1012.6
495
320
9
501.5
304.5
716.9
519.9
932.2
735.2
1147.6
950.6
1363
1166
557
360
10
676.9
458.9
892.2
674.2
1107.6
889.6
1323
1105
1753.7
1535.7
618
400
11
636.9
396.9
852.2
612.2
1067.6
827.6
1283
1043
1713.7
1473.7
680
440
12
812.2
550.2
1027.6
765.6
1243
981
1673.7
1411.7
742
480
C-210SR
5
251.2
146.2
382.8
277.8
514.3
409.3
777.4
672.4
1040.5
935.5
380
275
6
327.8
201.8
459.3
333.3
722.4
596.4
985.5
859.5
456
330
7
404.3
257.3
667.4
520.4
930.5
783.5
1193.6
1046.6
532
385
8
612.4
444.4
875.5
707.5
1138.6
970.6
1401.7
1233.7
608
440
9
557.4
368.4
820.5
631.5
1083.6
894.6
1346.7
1157.7
1609.8
1420.8
684
495
10
765.5
555.5
1028.6
818.6
1291.7
1081.7
1554.8
1344.8
2081
1871
760
550
11
710.5
479.5
973.6
742.6
1236.7
1005.7
1499.8
1268.8
2026
1795
836
605
12
918.6
666.6
1181.7
929.7
1444.8
1192.8
1971
1719
912
660
C-240SR
5
363.2
219.2
556.5
412.5
749.8
605.8
1136.4
992.4
1523
1379
554
410
6
474.5
301.5
667.8
494.8
1054.4
881.4
1441
1268
665
492
7
584.8
384.8
971.4
771.4
1358
1158
1744.6
1544.6
775
575
8
890.4
660.4
1277
1047
1663.6
1433.6
2050.2
1820.2
886
656
9
807.4
548.4
1194
935
1580.6
1321.6
1967.2
1708.2
2353.8
2094.8
998
739
10
1112
825
1498.6
1211.6
1885.2
1598.2
2271.8
1984.8
3045
2758
1108
821
11
1030
714
1416.6
1100.6
1803.2
1487.2
2189.8
1873.8
2963
2647
1219
903
12
1334.6
989.6
1721.2
1376.2
2107.8
1762.8
2881
2536
1330
985
